Front Service Led Advertising Signs P4 P5 P6 Outdoor LED Display
Screen For Advertising
Feature of Outdoor Front open LED Advertising Display:
1. Easy to install and maintain:
Front open panel, easy to install and maintain, just need to change
the wrong LED module at the front, magnets is easy to pick down,
reduce the fees of installation and maintainance.
2. Built-in Light sensor
Can adjust the brightness according to the enviroment
automatically.
Reduced the energy comsuption and light polluton.

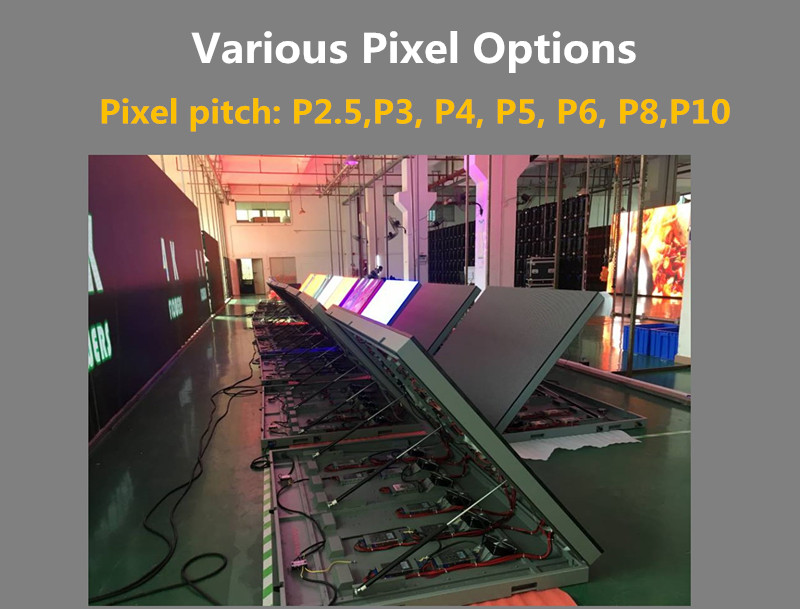

LED Signs Project Installed:
As shown in the above project , the screen only needs an angle iron
to fix it, and then it can be installed.
Normally, the height of this kind of project cannot exceed 3 meters, otherwise the load bearing is too much and the cabinet body is
easy to deform.
Because of the small size, if you want a good display effect, we
recommend P4, P5, P6.
It is widely used at the entrance of banks, restaurants, and shops.
Technical Specification:
Pitch/mm | P5 | P4 |
Module size/mm | 160x160 | 320x160 |
Density of pixel/(dots/m2) | 40,000 | 62500 |
Led encapsulation | SMD2727 | SMD1921 |
Optimum viewing distance | 5-16m | 4-20m |
View angle / ° | 140 H,120 V | 140 H,120 V |
Average power consumption/W/M2 | 450 | 450 |
Size of cabinet/mm | 960X960 | 960X960 |
Driving method | 1/8 scan constant current | 1/8 scan constant current |
Refresh rate Hz/S | ≥1200 | ≥1200 |
Luminance of white balance | ≥6500 nits | ≥5500 nits |
IP rating | Front,IP65;Rear,IP43 |
Working voltage | 110-220VAC/+/- 10% |
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
Control system | Linsn / Nova(sending card,receiving cards and Hubs) |
Application | outdoor advertising led signs |
FAQ:
No.1 Why choose us?
With more than 14+ Years of experience in producing LED display, we
have passed CE, RoHS and ISO9001 certifications, and we always put
quality on the top of our list, because we firmly believe "Quality
is the lifeline for a corporation".
No.2 How to check quality?
Our products are made with good quality led materials, like PCB,
led lamps,ICs, etc, guaranteed by our reliable parters.
What's more, you or your partners can pay a visit to our factory in
our working hours to have a close observation of our products.
At last, before you place order in production and after production,
we will take some pictures of related products. We promise
everything is the same as we discussed.
No.3 How to improve quality?
Find problems and solve them.
As a professional manufacturer in LED display field, we pay close
attention to material quality at anytime and send feedback to
supplier in time when something is wrong.
And we welcome customer to give us feedback on any products, then
we will work out solutions as soon as possible.
No.4 How could I know how to control LED display?
Frist, if you puchursed our led screen, the control system would be
set up in advance by our professional workers.
Second, if you buy some other spare parts like module, control
card, power supply,etc., we can also assemble and install control
system in advance, and we shall recommend corresponding control
card for you .
Third, we will help you install led screen by teamviewer or send
RCG file to you, if you can't finish intallation by yourself.
No.5 If any products have problems, how to do?
First, we hope you can receive flawless products on arrival.
Second, each order will be attached with some free spare parts,
like led lamps or ICs, etc, so that you can do some simple reparing
works.
Third, if you purchase LED screens, please don't forget to buy a
samll quantity of modules for spare use.
