Self-packaged SMD1921 has stable performance
High oxidation resistance
IP65 Protecting degrees: waterproof design,adapt to all kind of bad
condition
Sign In | Join Free | My himfr.com |
|
Ask Lasest Price | |
Brand Name : | Eachinled |
Model Number : | P3.9mm |
Certification : | ROHS CE |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 5000 Square meters Per Month |
Delivery Time : | 15 Days |
2020 Outdoor Rental LED Display With Nationstar SMD1921 LED Screen Panels 250mm*250mm
Parameters | Indoor& Outdoor |
Pixel Pitch(mm) | 3.9 |
LED type | SMD 2121/1921 |
Pixel per Module(Pixels/㎡) | 65,536 |
Module Size(mm) | 250*250 |
Brightness(cd/㎡) | 1000/5500 |
Viewing Angle(H/V) | H:140/V:100 |
Cabinet size(mm*mm) | 500*500*65 |
Cabinet Weight(kg) | ≈8kg |
Display Refresh Rate(Hz) | ≥3840 |
Input Power Frequency(Hz) | 50/60 |
Input Voltage(Nomina)(V) | AC110,220,110-240 |
Input Power(Max)(W/㎡) | ≈600 |
Input Power(Aveerage)(W/㎡) | ≈300 |
Lifepan(H) | ≥50,000 |
1. Light weight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Nice appearance and simple structures,Unique for rental led
screen business.
3.With multi fast locks and alignment pins, flatness and seamless
are greatly reduced, the precise seamless and flatness are 0.01mm
4. Jointed correctly, being installed & dismounted by one person
without tool.
5. Humanized operating interface with breakdown indicator lights,
easy to maintain.
6. High debugging brightness and no damage to gray scale, achieving
the debugging technology
for nice image.
7.140 viewing angle,appealing to a wider audience,+/- 15 Angle
adjustment is allowed for stage design.
8.Protection level is IP65, suitable for outdoor application.
Self-packaged SMD1921 has stable performance
High oxidation resistance
IP65 Protecting degrees: waterproof design,adapt to all kind of bad
condition
Application:
3.9mm LED screen is widely used for church,concert, stage, conference, exhibition, fashion show etc.
Popular size for church are 4x3m, 5x3m, 6x3m,6x4m. in general, our
customer prefer to hanging installation.

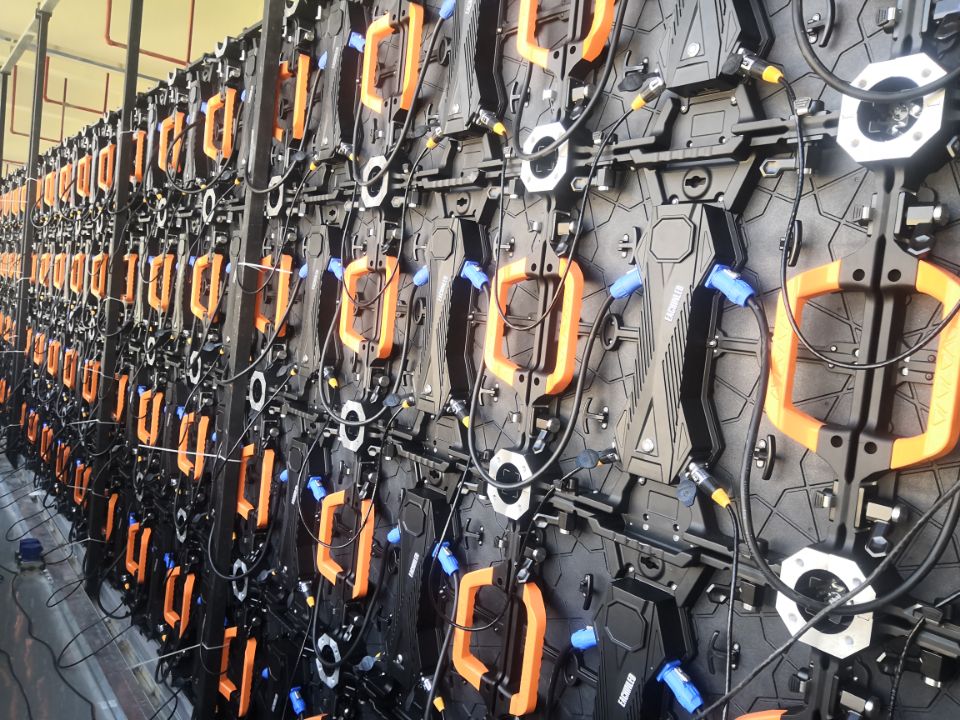

The LED Video Screen is made up of a series of modular ‘modules’
which can be assembled into different sizes. Each modules relies on
thousands of tiny electronic dots that light up dynamically. Seen
at a distance, these points of light resolve into a stunning image!
How about the size of project?
A: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project
size. I will appreciate it if any drawing files about installation
offered.
Eachinled is the professional manufacturer of LED Video walls ,outdoor indoor
LED Display Screen, LED Panel in Shenzhen, China with led display
exported to more than 100 countries and regions, passed CE,ROHS FC
Certifications, If you are considering LED go with the known leader
of LED display suppliers, please contact us.
