P2.5 Indoor Full Color LED Display , LED Wall Screens For World
Trade Center In Moscow
♦ any size can be custom-made you want
♦ rich installation accessories, flexible installation, adapting to
different scenarios
♦ high permeability, go through light, air and smoke easily.
♦ achieve the flexible application of dot, line and face.
♦ don't worry about the limitation of the application, we could
achieve various kinds of the dimorphisms and test count
♦ It is the best choice for the creative design company to achieve
easier design and various applications by one product.
Small Pixel Pitch LED Display Technical Specification:
| Item | P1.667 | P1.923 | P2 | P2.5 |
| LED type | SMD0707(3 in 1) | SMD1010(3 in 1) | SMD1010(3 in 1) | SMD1010(3 in 1) |
| Pixel pitch(mm) | 1.667 | 1.923 | 2 | 2.5 |
| Module resolution(W x H) | 120 x 180 | 104 x 156 | 100 x 150 | 80 x 120 |
| Module size(mm) | 200(W) x 300(H) | 200(W) x 300(H) | 200(W) x 300(H) | 200(W) x 300(H) |
| Module weight(kg) | 0.4 | 0.4 | 0.4 | 0.4 |
| Module max.power consuption(W) | 70 | 50 | 50 | 40 |
| Cabient Module composition(W x H) | 2 x 1 | 2 x 1 | 2 x 1 | 2 x 1 |
| Cabient resolution(W x H) | 240 x 180 | 208 x 156 | 200 x 150 | 160 x 120 |
| Cabient size(mm) | 400(W) x 300(H) x 66(D) | 400(W) x 300(H) x 66(D) | 400(W) x 300(H) x 66(D) | 400(W) x 300(H) x 66(D) |
| Cabient area(m2) | 0.12 | 0.12 | 0.12 | 0.12 |
| Cabient weight(kg) | 4.6 | 4.6 | 4.6 | 4.6 |
| Cabient pixel density(dots/m2) | 360000 | 270422 | 250000 | 160000 |
| Cabient flatness(mm) | ≤0.2 | 0.4 | 0.4 | 0.4 |
| Maintenance type | Back maintenance | Back maintenance | Back maintenance | Back maintenance |
| Cabient material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Single point brightness calibration | Support | Support | Support | Support |
| White balance brightness | Support | Support | Support | Support |
| Color temperature(K) | ≥1000(Color temperature6500K) | ≥1000(Color temperature6500K) | ≥1000(Color temperature6500K) | ≥1000(Color temperature6500K) |
| Viewing angle(horizontal/vertical°) | 160/160 | 160/160 | 160/160 | 160/160 |
| Luminous piont center distance deviation | <3% | <3% | <3% | <3% |
| Brightness/Color uniformity | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Max.power(W/Cabient;W/ m2
) | 150;1200 | 120;1000 | 120;1000 | 95;791 |
Average.power(W/Cabient;W/ m2
) | 35;300 | 29;280 | 29;280 | 29;222 |
| Working voltage | AC90~264V 47-63(Hz) | AC90~264V 47-63(Hz) | AC90~264V 47-63(Hz) | AC90~264V 47-63(Hz) |
| Security Standard | GB4943/EN60950 | GB4943/EN60950 | GB4943/EN60950 | GB4943/EN60950 |
| Frame change frequency(Hz) | 50&60 | 50&60 | 50&60 | 50&60 |
| Driving mode(constant current) | 1/30 Scan | 1/26 Scan | 1/30 Scan | 1/30 Scan |
| Grey scale | 1638 | 1638 | 1638 | 1638 |
| Refersh rate(Hz) | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Data processing | 16bit | 16bit | 16bit | 16bit |
| Module take off electricity storage capabilities | Save brightness,color calibration data,module parameter | Save brightness,color calibration data,module parameter | Save brightness,color calibration data,module parameter | Save brightness,color calibration data,module parameter |
| Video definition | 2K,4K UHD | 2K,4K UHD | 2K,4K UHD | 2K,4K UHD |
| Typical life span(hrs) | 50,000H | 50,000H | 50,000H | 50,000H |
| Working environment(℃/RH) | -10~40/10%~80%RH (non condensing) | -10~40/10%~80%RH (non condensing) | -10~40/10%~80%RH (non condensing) | -10~40/10%~80%RH (non condensing) |
| Storage environment (℃/RH) | -20~60/10%~85%RH (non condensing) | -20~60/10%~85%RH (non condensing) | -20~60/10%~85%RH (non condensing) | -20~60/10%~85%RH (non condensing |
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor (1.9mm / 2.5mm) Led Screen
Q2: Where is it used for?

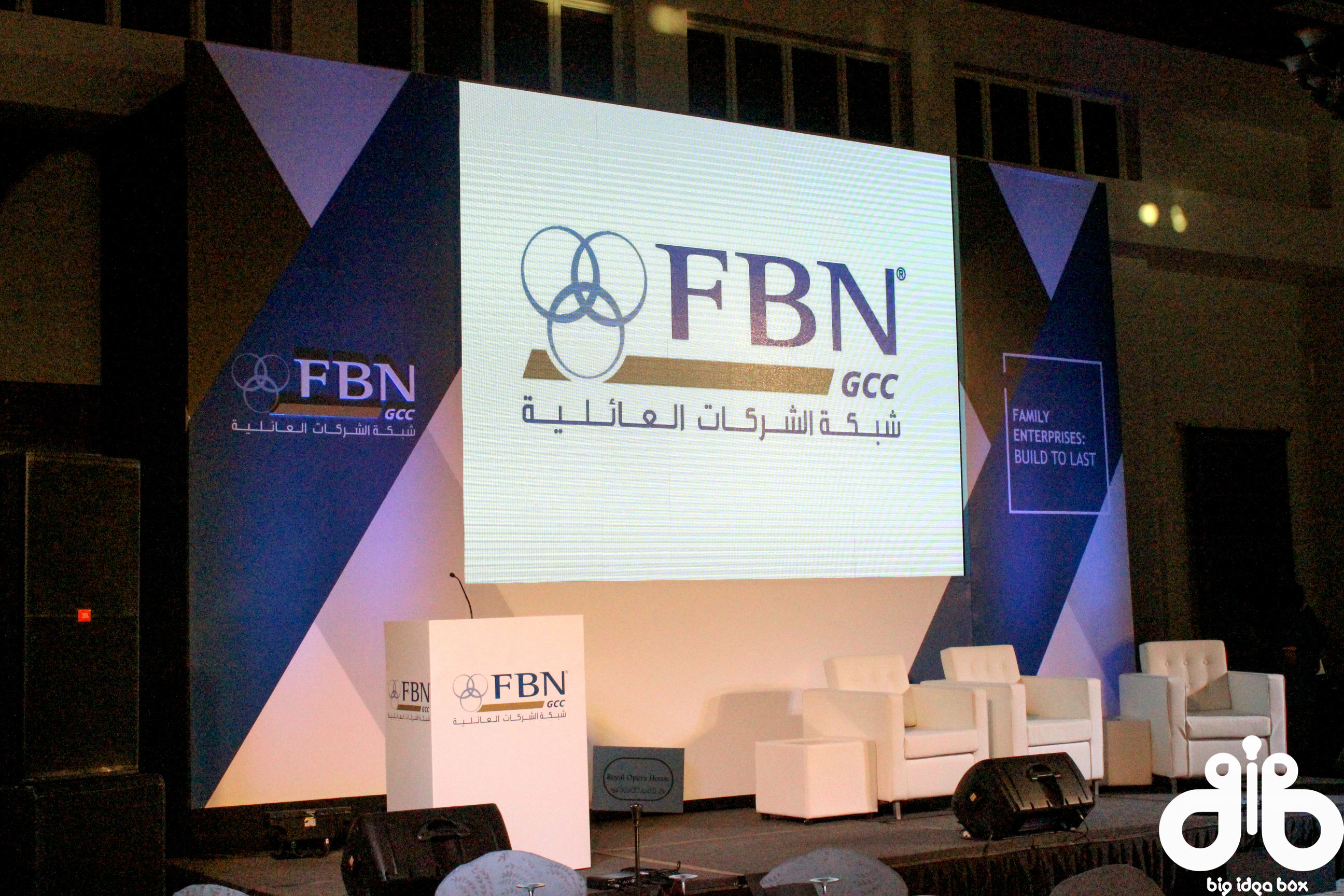

A2: Indoor & rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling
system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil
offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
