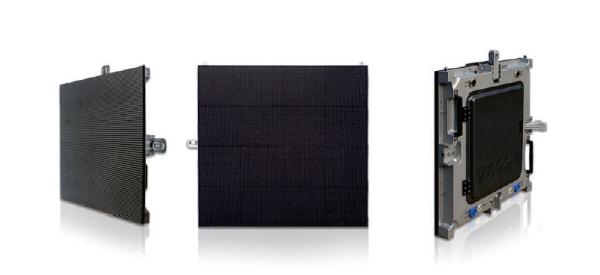

High Definition High Definition LED Display Indoor Church LED
Screen Rental And Fixed
1.LEDs. we select super led tips with high brightness, broad viewing
angle(H140degree, V140degree), all the LEDs are ageing for 72 hours
before assembly,
when in modules, also aging for 72 hours, after assembly into a
screen, still aging 72 hours. so the final LEDs are aging at least
for 216 hours, up to 9 days.
2.Modules. we use SMD2020/2121/3535 pixel configuration to realise high
brightness. you may find some lower price suppliers but also same
brightness. if you note,
maybe they use is SMD, in this case, can cut down much cost but
also cut down the life of the display. why? because to reach the
same brightness,
1R need more current, well for 2R display, each R just need half
current. This just like one man and a team to take a burden, A man
just can undertake,
but two more easily. and our modules case is PVC, which is more durable and have a stronger ability in bask,
anti-ultraviolet and Difficult to deformation
than Plastic ones.
3.Cabinets. they are used in galvanized steel, anti-salt, anticorrosive and
waterproof.
use state-of-the-art LED drive IC-MBI5026/MBI5124, brightness can
up to 2000cd/m2, live color video and vivid image with 256 grey
level.
for outdoor led displays, all of them are IP 65 and designed to
withstand harsh environmental conditions, such as sun glare, heat,
cold, and humidity.
you can see more details in the quotation.
5.Packing: anti-shaking wooden case, which is lighter than normal wooden case
but more protective to the goods.
6. Spare parts for free. our screen's scotoma rate is below 0.0002, but To prevent
accidental, we provide some free spare parts according to
the size of screen.
7. Warranty for 24 monthes.
8. Technology support: we have full hardware and software files available for all you
need, we are here to working for you.
.
Technical Specification:
Indoor Die casting Aluminum 480mm&576mm Rental LED Displays |
| Pitch/mm |
P3 |
P3.75 |
P4 |
P4.8 |
P5 |
P6 |
|
Module size/mm | 240x240 | 240x240 | 288x288 | 288x288 | 240x240 | 288X288 |
|
Density of pixel/(dots/m2) | 111,111 | 71,111 | 62500 | 43,264 | 40,000 | 27,777 |
|
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
|
Led encapsulation | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD3528 | SMD3528 |
|
Resolution of module | 80X80 | 80X80 | 60X60 | 60X60 | 48X48 | 48X48 |
|
Optimum viewing distance | 2-15m | 3-15m | 4-15m | 5-16m | 5-16m | 6-20m |
|
| View angle / ° | 140H,120V | 140H,120V | 140H,120V | 140H,120V | 140H,120V | 140H120 |
|
Size of cabinet/mm | 480x480 | 480x480 | 576X576 | 576X576 | 480X480 | 576x576 |
|
Resolution of cabinet | 160X160 | 128X128 | 144X144 | 96X96 | 96X96 | 96x96 |
|
Weight of cabinet/kg | 8 | 8 | 8 | 11 | 11 | 11 |
|
Driving method | 1/16 scan constant current | 1/16 scan constant current | 1/12 scan constant current | 1/15 scan constant current | 1/16 scan constant current | 1/8 scan constant current |
|
Refresh rate Hz/S | ≥1500 | ≥1500 | ≥1500 | ≥1500 | ≥1500 | ≥1500 |
|
Luminance of white balance | ≥1100 nits | ≥1100 nits | ≥1100 nits | ≥1100 nit | ≥1500 nits | ≥1500nits |
|
Operation of Environmental Temperature/℃ | below 30 to above 50 |
Working voltage | 110-220 VAC/+/- 10% |
Grey scale/color | displaying colors≥16.7M(synchronized) |
Brightness adjustment | 256 levels of each color(manually),100 levels of each
color(automatically) |
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
Control system | (sending card,receiving cards and Hubs) |
Average of non-failure life | >50,00h |
Life span | >100,000h |
Functionless dot rate | <0.0001 |
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor 3mm/4MM/5MM/P6mm/P4.8mm/P5.33)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of
staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar And Linsn
controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil
offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
Our Service and Mission
Eachinled has a perfect service system, including pre-sale service,
in-sale service and after-sale service. To provide high quality
service for our customers, we train every salesman with necessary
product maintenance knowledge and organized a Technology Supporting
Department with a group of excellent and professional engineers.
Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting
and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
