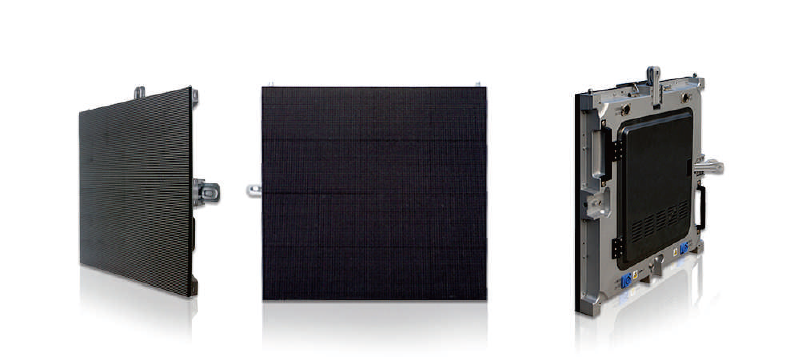

Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display

Shenzhen Eachinled Optoelectronics Co.,Ltd
Contact Now
    Buy cheap Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display from wholesalers

    Buy cheap Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display from wholesalers
    • Buy cheap Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display from wholesalers
    • Buy cheap Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display from wholesalers
    • Buy cheap Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display from wholesalers
    • Buy cheap Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display from wholesalers

    Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display

    Ask Lasest Price
    Brand Name : Eachinled
    Model Number : P3 P4 P4.8 P5 P6
    Certification : ROHS CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Square meters Per Month
    Delivery Time : 15 Days
    • Product Details
    • Company Profile

    Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display

    Indoor SMD P4 P6 P5 Colorful LED Screens for Churches , Synchronization LED Display


    1. SMD3-in-1 technology are used for indoor LED display.


    2. Wide view angle: 140 in horizonal and 140 in vertical.


    3. Special design and advanced SMT technology improves the heat dissipation


    4. With high refresh rate controller, guarantee that no scan line when taking photos.


    5. Regular shape and special shape (such as curve, round) can be designed.

    6. Easy for assembling and connecting with the connector added.


    7. High color uniformity and clear image can bring you a vivid audio visual effect.


    8. Both front access and rear access are avaiable.

    .

    Technical Specification:

    Indoor Die casting Aluminum 480mm&576mm Rental LED Displays

    Pitch/mm


    P3


    P3.75


    P4


    P4.8


    P5


    P6

    Module size/mm

    240x240

    240x240

    288x288

    288x288

    240x240

    288X288

    Density of pixel/(dots/m2)

    111,111

    71,111

    62500

    43,264

    40,000

    27,777

    Pixel composition

    1R1G1B

    1R1G1B

    1R1G1B

    1R1G1B

    1R1G1B

    1R1G1B

    Led encapsulation

    SMD2121

    SMD2121

    SMD2121

    SMD2121

    SMD3528

    SMD3528

    Resolution of module

    80X80

    80X80

    60X60

    60X60

    48X48

    48X48

    Optimum viewing distance

    2-15m

    3-15m

    4-15m

    5-16m

    5-16m

    6-20m

    View angle / °

    140H,120V

    140H,120V

    140H,120V

    140H,120V

    140H,120V

    140H120

    Size of cabinet/mm

    480x480

    480x480

    576X576

    576X576

    480X480

    576x576

    Resolution of cabinet

    160X160

    128X128

    144X144

    96X96

    96X96

    96x96

    Weight of cabinet/kg

    8

    8

    8

    11

    11

    11

    Driving method

    1/16 scan constant current

    1/16 scan constant current

    1/12 scan constant current

    1/15 scan constant current

    1/16 scan constant current

    1/8 scan constant current

    Refresh rate Hz/S

    ≥1500

    ≥1500

    ≥1500

    ≥1500

    ≥1500

    ≥1500

    Luminance of white balance

    ≥1100 nits

    ≥1100 nits

    ≥1100 nits

    ≥1100 nit

    ≥1500 nits

    ≥1500nits

    Operation of Environmental Temperature/℃

    below 30 to above 50

    Working voltage

    110-220 VAC/+/- 10%

    Grey scale/color

    displaying colors≥16.7M(synchronized)

    Brightness adjustment

    256 levels of each color(manually),100 levels of each color(automatically)

    Input signal

    RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc

    Control system

    (sending card,receiving cards and Hubs)

    Average of non-failure life

    >50,00h

    Life span

    >100,000h

    Functionless dot rate

    <0.0001



    FAQ

    Q1: What's the pixel pitch for Indoor LED Display Screen ?

    A1: Indoor&Outdoor 3mm/3.75MM/4MM/5MM/P6mm/P4.8mm/P5.33)

    Q2: Where is it used for?

    A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.


    Q3: Can it play HD video?

    A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.

    Q4: What's the controlling system?

    A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.

    Q5: How about the size of project?

    A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.


    Our Service and Mission

    Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
    Pre-sale service:
    1. Reply enquiries in 24 hours.
    2. Market research and forecast for customer.
    3. Provide unique and professional solutions based on customer's requirement.
    4. Data sheet and samples offer.
    5. Other services, such as special packing design, factory visiting and so on.

    In-sale service:
    1. Tracking report in producing.
    2. Quality test report for every order.
    3. Photos and videos as per customer's requirement.
    4. Free spare parts.

    After-sale service:
    1. Lifetime free maintenance and upgrade.
    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
    3. Customer satisfaction tracking report.
    4. Free technician training.
    5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
    6. Special service for big project, such as stadium, exhibitions, squares and so on.
