P1.9 Indoor Full Color HD Pixel LED Display for Restaurants /
Conference Room / TV Station

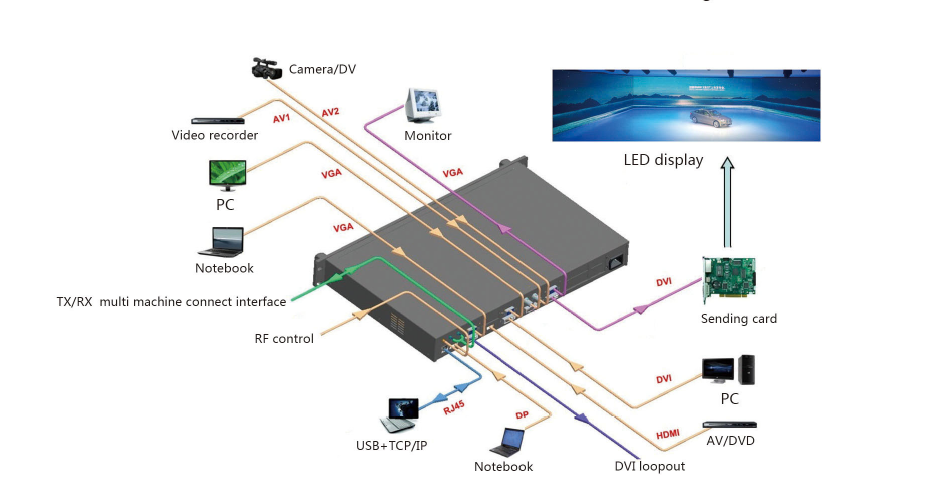

1) Video play: it can play video programs in video camera, VCD, DVD and LD; it
can also play files of different formats, such as AVI, MOV, MPG,
DAT and VOB; it has three display formats, namely, VGA+VIDE, Video
and VGA;
2) Information release: it can display a variety of computer information, graphs,
two-dimensional animation and three-dimensional animation; it has
lots of display methods, such as rolling, lead-in, lead-out, up
shift, left shift and circulation; font, character size, letter and
speed can be set randomly;
3) Network function With the network interface, it can be connected with the Internet
to play information on the Internet at the same time; display
screens at different places can be centralizedly controlled through
Internet according to customers’ requirements, and “VPM+broadband”
may be adopted for remote control.
Range of Application
Products and solutions in Eachinled are applied to sports, advertisements, banks, securities, stations, wharfs,
plazas, postal service, telecommunication, government units,
schools, restaurants, entertainment places, enterprises and etc.
Technical Specification:
| Item | P1.667 | P1.923 | P2 | P2.5 |
| LED type | SMD0707(3 in 1) | SMD1010(3 in 1) | SMD1010(3 in 1) | SMD1010(3 in 1) |
| Pixel pitch(mm) | 1.667 | 1.923 | 2 | 2.5 |
| Module resolution(W x H) | 120 x 180 | 104 x 156 | 100 x 150 | 80 x 120 |
| Module size(mm) | 200(W) x 300(H) | 200(W) x 300(H) | 200(W) x 300(H) | 200(W) x 300(H) |
| Module weight(kg) | 0.4 | 0.4 | 0.4 | 0.4 |
| Module max.power consuption(W) | 70 | 50 | 50 | 40 |
| Cabient Module composition(W x H) | 2 x 1 | 2 x 1 | 2 x 1 | 2 x 1 |
| Cabient resolution(W x H) | 240 x 180 | 208 x 156 | 200 x 150 | 160 x 120 |
| Cabient size(mm) | 400(W) x 300(H) x 66(D) | 400(W) x 300(H) x 66(D) | 400(W) x 300(H) x 66(D) | 400(W) x 300(H) x 66(D) |
| Cabient area(m2) | 0.12 | 0.12 | 0.12 | 0.12 |
| Cabient weight(kg) | 4.6 | 4.6 | 4.6 | 4.6 |
| Cabient pixel density(dots/m2) | 360000 | 270422 | 250000 | 160000 |
| Cabient flatness(mm) | ≤0.2 | 0.4 | 0.4 | 0.4 |
| Maintenance type | Back maintenance | Back maintenance | Back maintenance | Back maintenance |
| Cabient material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Single point brightness calibration | Support | Support | Support | Support |
| White balance brightness | Support | Support | Support | Support |
| Color temperature(K) | ≥1000(Color temperature6500K) | ≥1000(Color temperature6500K) | ≥1000(Color temperature6500K) | ≥1000(Color temperature6500K) |
| Viewing angle(horizontal/vertical°) | 160/160 | 160/160 | 160/160 | 160/160 |
| Luminous piont center distance deviation | <3% | <3% | <3% | <3% |
| Brightness/Color uniformity | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Max.power(W/Cabient;W/ m2
) | 150;1200 | 120;1000 | 120;1000 | 95;791 |
Average.power(W/Cabient;W/ m2
) | 35;300 | 29;280 | 29;280 | 29;222 |
| Working voltage | AC90~264V 47-63(Hz) | AC90~264V 47-63(Hz) | AC90~264V 47-63(Hz) | AC90~264V 47-63(Hz) |
| Security Standard | GB4943/EN60950 | GB4943/EN60950 | GB4943/EN60950 | GB4943/EN60950 |
| Frame change frequency(Hz) | 50&60 | 50&60 | 50&60 | 50&60 |
| Driving mode(constant current) | 1/30 Scan | 1/26 Scan | 1/30 Scan | 1/30 Scan |
| Grey scale | 1638 | 1638 | 1638 | 1638 |
| Refersh rate(Hz) | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Data processing | 16bit | 16bit | 16bit | 16bit |
| Module take off electricity storage capabilities | Save brightness,color calibration data,module parameter | Save brightness,color calibration data,module parameter | Save brightness,color calibration data,module parameter | Save brightness,color calibration data,module parameter |
| Video definition | 2K,4K UHD | 2K,4K UHD | 2K,4K UHD | 2K,4K UHD |
| Typical life span(hrs) | 50,000H | 50,000H | 50,000H | 50,000H |
| Working environment(℃/RH) | -10~40/10%~80%RH (non condensing) | -10~40/10%~80%RH (non condensing) | -10~40/10%~80%RH (non condensing) | -10~40/10%~80%RH (non condensing) |
| Storage environment (℃/RH) | -20~60/10%~85%RH (non condensing) | -20~60/10%~85%RH (non condensing) | -20~60/10%~85%RH (non condensing) | -20~60/10%~85%RH (non condensing |
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor P1.9mm/P2.5mmP2.0mm/P3)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of
staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar And Linsn
controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil
offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
Our Service and Mission
Eachinled has a perfect service system, including pre-sale service,
in-sale service and after-sale service. To provide high quality
service for our customers, we train every salesman with necessary
product maintenance knowledge and organized a Technology Supporting
Department with a group of excellent and professional engineers.
Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting
and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
