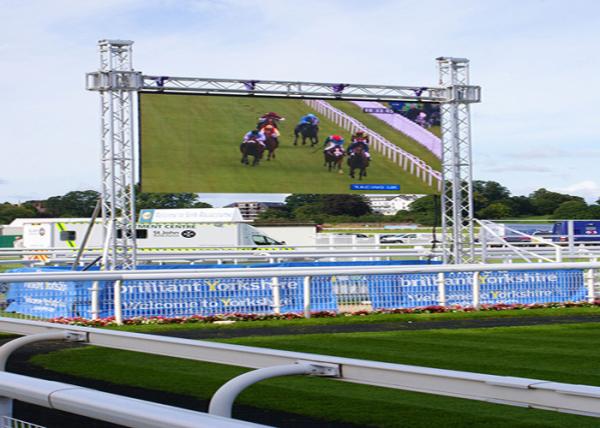

Outdoor Pixel 7mm Rental Stage LED Screen For Wedding Music Concert
Advantages:
1: Aluminum cabinet made by CNC has more accurate tolerance on
structure than that made by metalplate processing, which ensures
the flatness of the entire LED screen.
2: Cabinet size of 500*1000*65mm and light weight of only 13 kg
enable one-person installation easier and simpler, save
installation time. But traditional LED screen is over 25 Kg with
the same size.
3: Adopting the CNC aluminum processing, it is high strength, high
tenacity, high accuracy and not easy to distort. The thickness of
our cabinet is 63mm, the traditonal cabinet is 160mm.
4: Adopting quick locking mechanism on the Up, down, left and right
connection. You can install one cabinet with high accuracy in 10
seconds. Cabinet splicing and wiring connection is fast and
reliable. Not only beautiful appearance but also a real sense of
the rapid disassembly.
5: Adopting modular design, assembled cabinet can install and
disassembly quickly and easily. It is easy to maintenance.
6. New structure design, can satisfy hoisting, overstow, indoor &
Outdoorused requirements.
7: Has excellent heat dissipation design and performance. it is low
noise and doesn't need external fan or air-condition. With the
features of lightweight and low power consumption, it can reduce
the labor cost of installation and operating costs.
Technical Specification:
Items | Parameter |
Pixel Pitch | PH7.8125mm(Outdoor) | PH8.925mm(Outdoor) |
Module Resolution(W*H) | 64(W)*128(H) | 56(W)*112(H) |
Pixel Configuration | 1R1G1B(in 3 n 1) |
LED Encapsulation | White SMD 3535 |
Pixel Density | 16384 Pixel /m2 | 12544 Pixel /m2 |
Driving Method | 1/4 Scan |
Refresh Frequency | ≥2880Hz |
Driver IC | Special constant current IC with high refresh rate & high gray
scale |
Grey Scale | 14Bit(depending on the system and IC configuration) |
Cabinet Size | 500*1000mm |
White balance Brightness Driving Method | ≥5500cd/ m2 |
Color Temperature | 8000K±500(adjustable) |
Viewing Angle | Horizontal 130°Vertical100° |
Optimal Viewing Distance | >8m | >9m |
Working Voltage | AC 220V/110V±10% |
Module voltage | DC4.2V |
Max Power Consumption | 250W/PCS | 280W/PCS |
Avg.Power Consumption | 130W/PCS | 140W/PCS |
Lifetime | 50000 hours |
Operating Temperature | –10℃ ~ 65℃ |
Net weight | 13Kg/ pcs | 13Kg/ pcs |
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor (7.8125mm /8.925mm)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of
staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling
system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil
offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
