Canada Truck Led Board Project Outdoor Advertising Mobile Led
Display Screen
1. SMD leds with high brightness for outdoor;
2. Good color uniformity confirm the vivid images and video;
3. Cabinets Seamless splice;
4. Good heat dissipation;
5. Energy-saving to reduce cost;
6. Environment friendly;
7. Brightness self-regulation to avoid the light pollution;
8. Easy operation control system;
9. 2 years warranty at least;
10. Competitive price.
We provide not only unit cabinet, but also the whole set of LED
display system, which includes: controlling system, connect cable
(with connector), software, accessories even fixing screws,
installation structure drawings, installation manual, electronic
circuit arrangement ,software operation manual and other services.
Cabinet design standardized makes the same cabinet dimension
applicable to different requirements of display pixels, make
installation for advertising screens more convenient. Reasonable
circuit wiring makes the quality stability and reliability. The
fans inside the unit cabinet can accelerate cooling.
Unique cabinet design, high fresh rate, can support HDMI SDI DP
VGA, creating high resolution pictures and delicate colors, to a
certain extent, it can be comparable to LCD.
Technical Specification:
Pitch/mm | P5 | P6 | P8 | P10 |
Module size/mm | 160x160 | 192x96 | 256x128 | 160x160 |
Density of pixel/(dots/m2) | 40,000 | 27,777 | 15,625 | 10,000 |
Led encapsulation | SMD2727 | SMD3535 | SMD3535 | DIP346/SMD3535 |
Optimum viewing distance | 5-16m | 6-20m | ≥6 | ≥10 |
View angle / ° | 140 H,120 V | 140 H,120 V | 140H,120V | 110 H,60 V |
Average power consumption/W/M2 | 1,000 | 900 | 500 | 450 |
Size of cabinet/mm | 960X960 | 960X960 | 1024X768 | 960X960 |
Driving method | 1/8 scan | 1/8 scan | 1/4 scan | 1/4 scan |
Refresh rate Hz/S | ≥1200 | ≥1200 | ≥1200 | ≥1200 |
Luminance of white balance | ≥7000 nits | ≥6500 nits | ≥6000 nits | ≥7000 nits |
IP rating | Front,IP65;Rear,IP43 |
Working voltage | 110-220 VAC/+/- 10% |
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
Control system | Nova(sending card,receiving cards and Hubs) |
Average of non-failure life | >50,00h |
Life span | >100,000h |

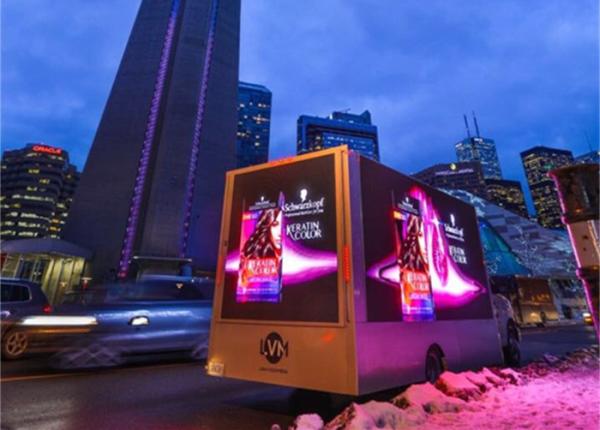

Project Application:
Pixel Pitch:5.95mm Size:Side Screen size 4mX2m,back Door Screen
size:1mx2m
FAQ:
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor 5mm/6MM/8MM/10MM/16MM)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of
staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar Or Linsn
controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar.
Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil
offer the suitable solution for your project size. I will
appreciate it if any drawing files about installation offered.
