Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows

Shenzhen Eachinled Optoelectronics Co.,Ltd
Contact Now
    Buy cheap Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows from wholesalers

    Buy cheap Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows from wholesalers
    • Buy cheap Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows from wholesalers
    • Buy cheap Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows from wholesalers
    • Buy cheap Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows from wholesalers
    • Buy cheap Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows from wholesalers

    Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows

    Ask Lasest Price
    Brand Name : Eachinled
    Model Number : P3.9mm
    Certification : Rohs UL CE FCC
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Square meters Per Month
    Delivery Time : 15 Working Days
    • Product Details
    • Company Profile

    Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows


    Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows


    Features

    1) LED: well-known international brand, with wide viewing angle, high brightness,
    little attenuation, good heat dissipation, and vivid colors.

    2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable
    the defective phenomena, such as dark bright, virtual light and so on.

    3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.

    4) Connector: Aerial grade brands ensure the stable transmission of power and signal.

    5) PCB Board: adopt 4-layer design.


    There are lots of ex-stock , then it owns good prices and stable quality, welcome to contact us for more details.

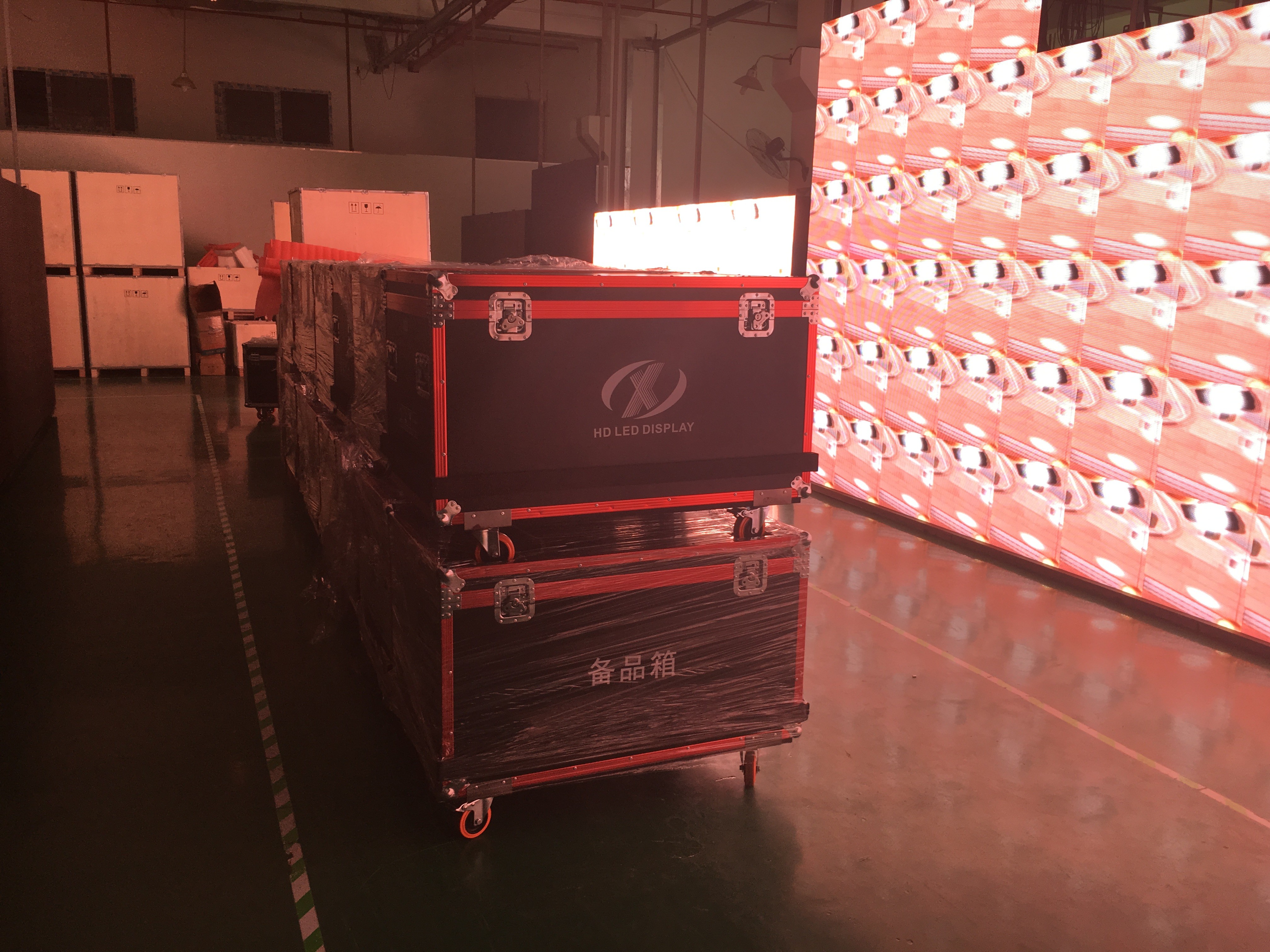

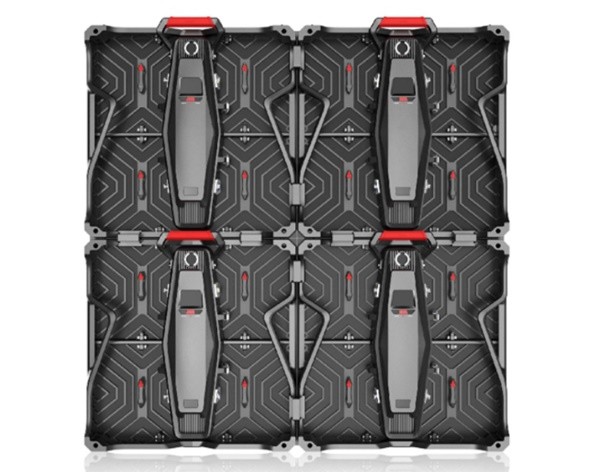

    Product Photos:


    Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows


    Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows

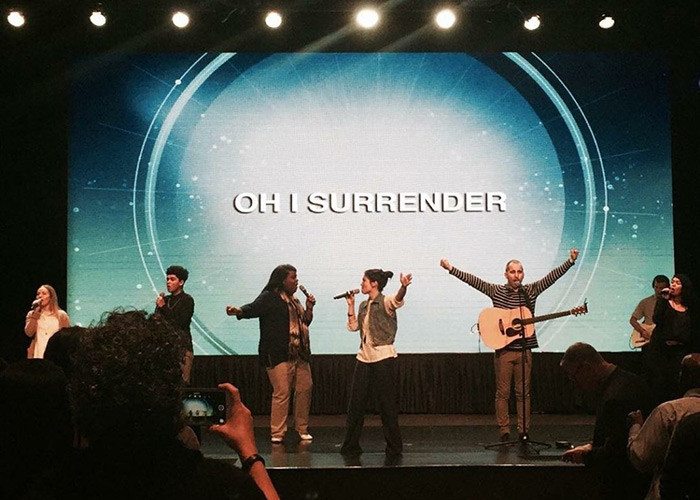

    Applications


    Business OrganizationsSupermarket, large-scale shopping malls, star-rated hotels, travel agencies
    Financial OrganizationsBanks, insurance companies, post offices, hospital, schools
    Public PlacesSubway, airports, stations, parks, exhibition halls, squares, stadiums, museums,
    commercial buildings, meeting rooms, government
    EntertainmentsMovie theaters, clubs, stages

    Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows


    Front Service Indoor Led Video Wall Led Display Panel For Concerts / Motor Shows


    I-Series (small pixel pitch) Specification :

    Pixel Pitch3.9mm
    Pixel ConfigurationSMD2121
    Module Resolution64*64dots
    Module Pixles4096dots
    Module Size250*250mm
    LED Cabinet Specification
    Cabinet Size(W*H*D)500*500*80mm
    Cabinet Resolution128*128dots
    Module Quanity4pcs
    Cabinet Pixels16384dots
    MaterialDie Casting Aluminum
    Brightness≥1200cd/m2
    Pixel Density65536dots/m2
    Driving Method1/16 scan constant current
    View Angle140H,120V
    Optimal Viewing Distance≥3
    Brightness ControlRed,Green and Blue 4096 Grade/Each
    Fresh requency≥2000Hz
    Frame Frequency60Hz
    Input VoltageAC100 - 120V/50Hz
    AC200 - 240V/50Hz
    Defects Rate≤0.00001
    Power ConsumptionMax:160W/Cabinet Average:80W/Cabinet
    Screen weight8kg/Cabinet
    MTBF>10,000 hours
    Life span≥100,000 hours
    Earth Leakage Current<3mA


    *** May I also know your requirements and where you come from?
    Eachinled would be very glad to provide you the most professional solution with good price upon receipt of your confirmation :)


    After-sale service


    1, Lifetime free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours

    2, we will reponse you in 24 houres if you have any question about the led screen,

    3, maintenance guidance and problem solution supplied in 48 hours.

    4, Providing customer with the loading program, so they can use as soon as they install the
    led screen,don't need to debug again

    5. Free technical training for how to use and handle the software.



    Customer satisfaction tracking report.
