Waterproof SMD Full Color Digital Stage Led Screen Panel High
Resolution
LED screen advantages:
1. LEDS: SMD2022,professional led packing, with gold thread encapsulation,
wide viewing angle, high waterproof, high constract ratio, low
attenuation
2. Colors: Eliminate ghost design, high refresh rate, high gray scale, low
power consumption make videos more exquisite and reality.
3. Material: famous brand from leds(SMD2022), IC(MBI5124,Taiwan brand),with
newest private design cabinet, connector use with aviation level,
signal more stable and working good.
4. Install: Thin cabinet, can be strip and curved install(with 0~20degree
curved), die cast aluminum with CNC technology, with less 0.1mm
error, more flat assembly. Support ground and hanging install

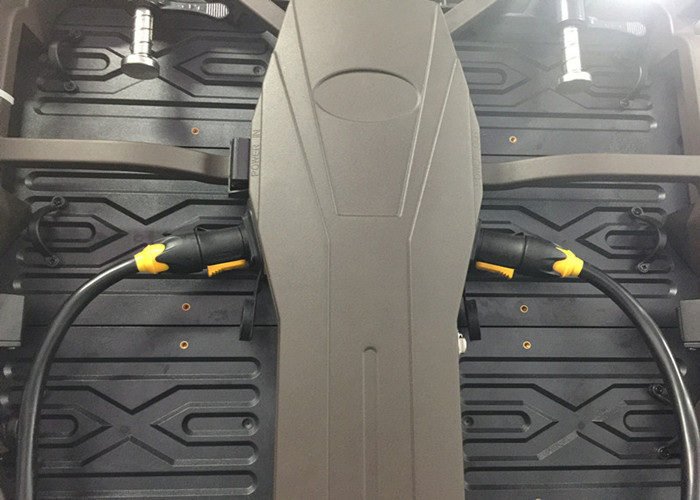

LED cabinet details:
Curved install is optional, with 0~20 degree, price is increase
usd100.00 per square meter
Color video visual testing of 48hours before shipping, with
strickly quality control systems to ensure Eachinled products with
good quality
Package, normal use flightcase pack, 6pcs led panel in 1 case, also
can make wooden case packing
LED specifications
| Aluminum Rental Outdoor LED Display Screen |
| Module | Pitch/mm | P5.95 |
| Module size/mm | 500x125 |
| Density of pixel/(dots/m2) | 28,224dots |
| Pixel composition | 1R1G1B |
| Led encapsulation | SMD2022 |
| Resolution of module | 84x21 |
| Optimum viewing distance | ≥5-15m |
| Main | View angle / ° | 160 H,140 V |
| Average power consumption/W/M2 | 300 |
| Max power consumption/W/M2 | 600 |
| Size of cabinet/mm | 500x1000x80mm |
| Resolution of cabinet | 84*168 |
| Weight of cabinet/kg | 14 |
| Driving method | 1/7 scan constant current |
| Frame frequency / Hz/S | ≥60 |
| Refresh rate Hz/S | ≥1000 |
| Luminance of white balance | ≥3500 nits |
| Operation of Environmental Temperature/℃ | below 30 to above 50 |
| IP rating | IP65 |
| Working vlotage | 110-220 VAC/+/- 10% |
| Grey scale/color | displaying colors≥16.7M(synchronized) |
| Brightness adjustment | 256 levels of each color(manually),100 levels of each
color(automatically) |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| Control system | Nova (sending card,receiving cards and Hubs) |
| Average of non-failure life | >50,00h |
| Life span | >100,000h |
| Functionless dot rate | <0.0001 |
Company introduce
Eachinled sales team are young, postive,creative, learning and
patience for their jobs and customers.
We provide indoor and outdoor full color led display for rental
events, stage,club,dj,concers satge and commercial outdoor fixed
adveritising use. we have exported over 10 years since 2006, for
more knowledge of and products of Eachinled, please feel fee to
visit our website: www.eachinled.com
We have passed CE,RoHs,UL,ETL certificated, eachinled products sell
to all over the world now
We provide free trainning for our customer, teach client how to set
up screens, make configuration of parameters, broadcast the videos
through Novastar or Linsn control systems.
