P3.91 P4.81 Rental Pixel LED Display Module SMD2121 Black Indoor /
Outdoor
Description:
1. High refresh rate 3840Hz ,best scan method for energy saving,
perfect 14bits grey level,
exclusive technology on driving IC to remove ghost shadow and more
pattern, good effect on photographing.
2. Thin: It is die-casting aluminum cabinet, thus it is featured by
high strength, toughness, precision and it is hard to be deformed.
The edge is just 33mm comparing to the 160mm of common cabinet.
3. Fast: There is fast locking device in four corners. It takes
only 10 seconds to assemble one cabinet . It is fast and precise
assembling.
4. Easy: The die-casting aluminum cabinet is modular designed, each
cabinet of the screen can be easily dismantled and
assembled(replaced). Best choice for Rental LED display,Rental LED
screen,outdoor rental led display,indoor Rental LED display.
5. Low: Excellent heat dissipation design, plus fans for heat
dissipation. Low noise, light weight, low cost for transportation
and assembling without tools with low cost for assembling.
I-Series (small pixel pitch) Specification :
| Pixel Pitch | 3.9mm |
| Pixel Configuration | SMD2121 |
| Module Resolution | 128*32dots |
| Module Pixles | 4096dots |
| Module Size | 500*125mm |
| LED Cabinet Specification | |
| Cabinet Size(W*H*D) | 500*1000*70mm |
| Cabinet Resolution | 128*256dots |
| Module Quanity | 16pcs |
| Cabinet Pixels | 32768dots |
| Material | Die Casting Aluminum |
| Brightness | ≥1100cd/m2 |
| Pixel Density | 65536dots/m2 |
| Driving Method | 1/16 scan constant current |
| View Angle | 140H,120V |
| Optimal Viewing Distance | ≥3 |
| Brightness Control | Red,Green and Blue 4096 Grade/Each |
| Fresh requency | ≥2880Hz |
| Frame Frequency | 60Hz |
| Input Voltage | AC100 - 120V/50Hz |
| AC200 - 240V/50Hz |
| Defects Rate | ≤0.00001 |
| Power Consumption | Max:160W/Cabinet Average:80W/Cabinet |
| Screen weight | 12kg/Cabinet |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Earth Leakage Current | <3mA |
Choose an LED Screen with a pixel pitch (resolution) that suits
your need.Example :2.97mm 3.91mm. 4.81mm. 5.95mm

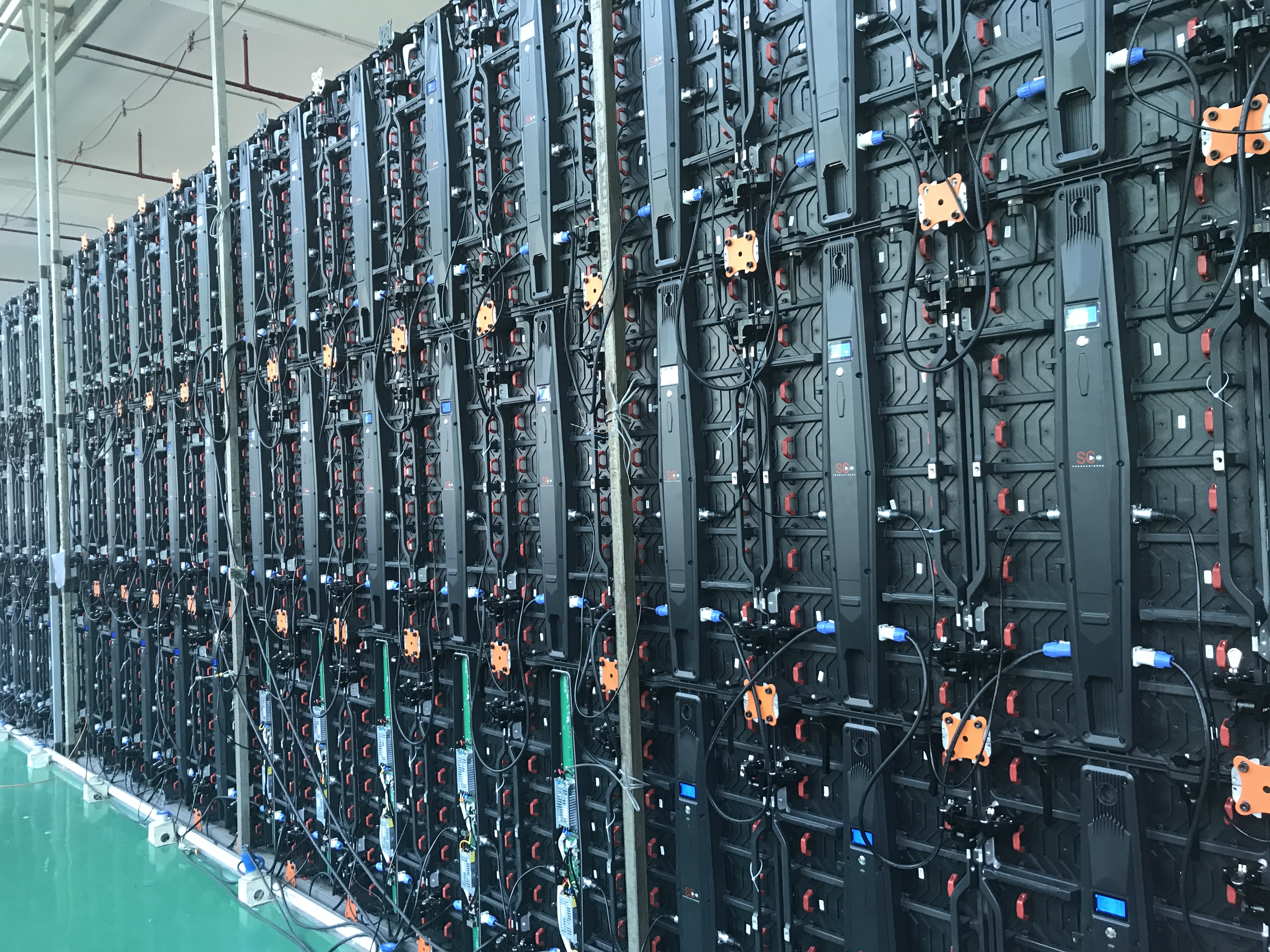

Product Photos
Also have 500mmX500mm Led Cabinet
Looking for an indoor rental LED display for an event?
We provide LED screen solutions to take your event to the higher
level
LED display has been widely used in various industries, along with
the development of market economy, the application of LED display
will continue to expand.
You can tell us your project , we will make a suitable led screen
solution for you
Trade Terms
1.Payment:T/T,30% as deposits ,70% balance to be paid before
delivering
2.By Air or by boat based on our customers' needs
3.Shipping port: ShenZhen,Mainland China
4.MOQ:1pc
Service Content
1. 24-hour hotline service, including counseling and technical
guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Eachinled provide the perfect display solution for indoor events
such as exhibitions, conferences,
awards shows, experimental marketing and corporate events.
Eachinled led screen can be used as the indoor and outdoor stage
LED display, dance floor, stadium LED display,
sky backdrop curtain,
stage, bank, exhibition, station, KTV, stadium, airport and other
indoor places.
fixing advertising LED display, showcase LED display, etc. And it
would be more convenient and fast, with using led screen.
