Indoor Rental P3.91 Led Screen, CE, ROHS FFC certification,
110v-220v power supply
1. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Nice appearance, private design, patent application.
3. Jointed correctly, being installed & dismounted by one person
without tool.
4. Humanized operating interface with breakdown indicator lights,
easy to maintaince.
5. High debugging brightness and no damage to gray scale,achieving
the debugging technology for high definition pictures.
Eachinled team offer hanging bar, video processor and flight cases
as a whole set order!
| Model Number | PH3.91 |
| Description | Die-casting Aluminum cabinets with hanging function |
| Application | Indoor use, AV rental |
| Pixel configuration | SMD2121 |
| Pixel pitch | 3.91mm |
| Cabinet pixel resolution | 128*128dots |
| Cabinet dimension | W: 500mm, H: 500mm, T: 80mm |
| Module size | W: 250mm, H: 250mm |
| Pixel density | 112896 dots/sqm |
| Minimum viewing distance | 4m |
| Brightness | >1000nits |
| Grey scale | 16384 steps |
| Display Mode | Synchronous with video source |
| Data refresh rate | >1920HZ |
| Driver IC | SMD2121 |
| LED drive | 1/16 scanning, constant current |
| Control software name | Nova studio |
| Viewing angle | 120° |
| Service access | Rear |
| Cabinet weight | 7kg(0.5 x 0.5m) |
| Power Consumption | Max: 130 w/cabinet; Average : 65w/cabinet |
| Protection Level | Front: IP43 Rear: IP43 |
| Lifetime to 50% brightness | 75,000hr |
| Certification | CE, ROHS, FCC |
| Warranty | 2 Years quality warranty |
| APPLICATION | Indoor living events |

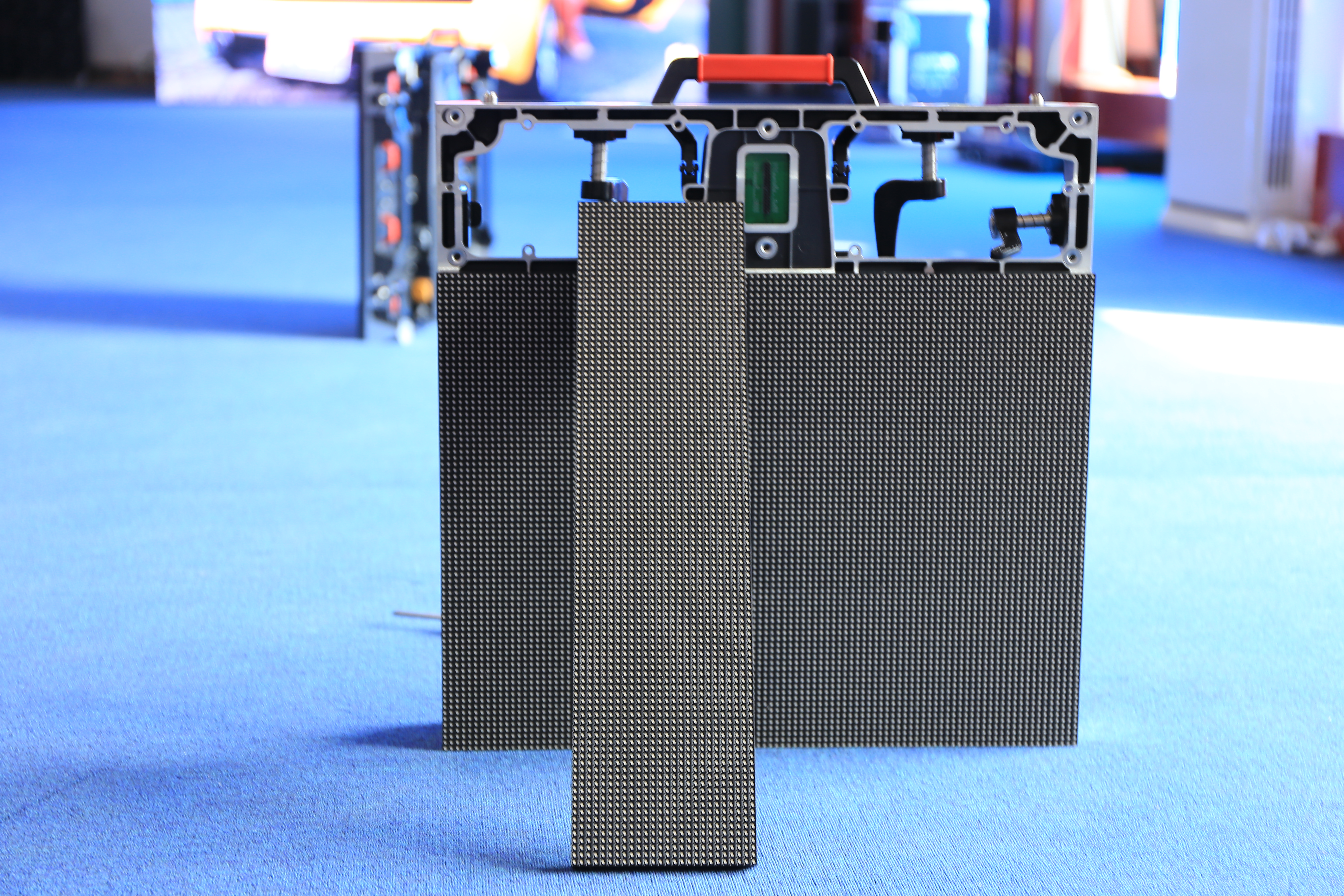

The module size is 500*125mm, standard version is 250x250mm.
The module don't have left or right different. Save maintance
costs.Easy to replace the module!
Have lcd control board, when it is working well, it is blue, if it
have singal or power supply error, it will turn to red.
The recieving card is A4S, is upgrade version of MRV210-4!!! Dual
singal back up.
We Build Amazing audio visual!
Eachinled is committed to be the globally leading and respected
provider for products and services of audio visual, events large
screen and advertising media.
EACHINLED is a national-level high-tech company , whose business
involves Indoor rental LED display , Outdoor rental LED screens,
Indoor fixed LED panels, Outdoor fixed LED advertising billboard
and HD pixel LED video walls, etc.
Heretofore, over 300 people are employed at the company’s
headquarters, and more than 4 factories are set up domestically. A
consolidated sales and after-sales service network is being
established over the world which will provide customers with
solutions, technological training and specialized support.
Reciving card & Sending card, Choose for Linsn or Novastar:
