Pixel Pitch 3.9mm Outdoor Stage LED Screen for HD Events Rental
Led Cabinet Description:
1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its
CNC+Die Casting molding process (precision up to 0.05mm), thus it
ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and
packing size, it ensures the greatly fast movement and
installation.
3. Light Weight
The weight of full panel is only 8KG, can be easily hanging up by
one person,
saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and
signal connector is quite easy and fast for in&out operation;
and the signal connection can be in horizontal and vertical ways,
it satisfied the rental application in any cases.
5. Can make Curved Led Video Wall.
6. New led module design
125mmX500mm led modle
(small pixel pitch P3.91 outdoor led video display) Specification :
| Pixel Pitch | 3.9mm |
| Pixel Configuration | SMD2121 |
| Module Resolution | 32*128dots |
| Module Pixles | 4096dots |
| Module Size | 125mm*500mm |
| LED Cabinet Specification |
| Cabinet Size(W*H*D) | 500*500*70mm |
| Cabinet Resolution | 128*128dots |
| Module Quanity | 8pcs |
| Cabinet Pixels | 16384dots |
| Material | Die Casting Aluminum |
| Brightness | ≥5500cd/m2 |
| Pixel Density | 65536dots/m2 |
| Driving Method | 1/16 scan constant current |
| View Angle | 140H,120V |
| Optimal Viewing Distance | ≥3 |
| Brightness Control | Red,Green and Blue 4096 Grade/Each |
| Fresh requency | ≥2000Hz |
| Frame Frequency | 60Hz |
| Input Voltage | AC100 - 120V/50Hz |
| AC200 - 240V/50Hz |
| Defects Rate | ≤0.00001 |
| Power Consumption | Max:160W/Cabinet Average:80W/Cabinet |
| Screen weight | 9kg/Cabinet |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Earth Leakage Current | <3mA |

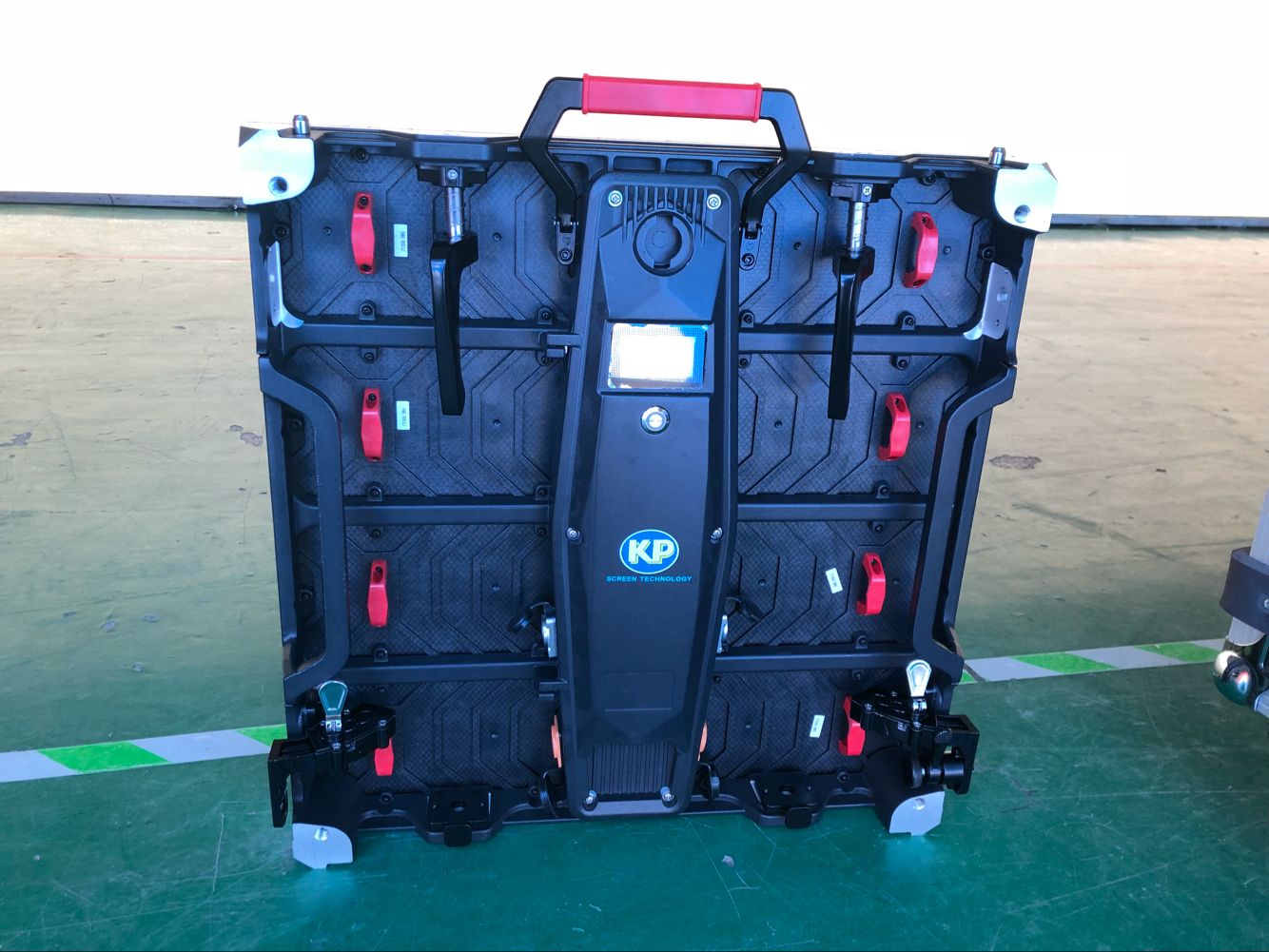

P3.91 Led Cabinet Product Photos:

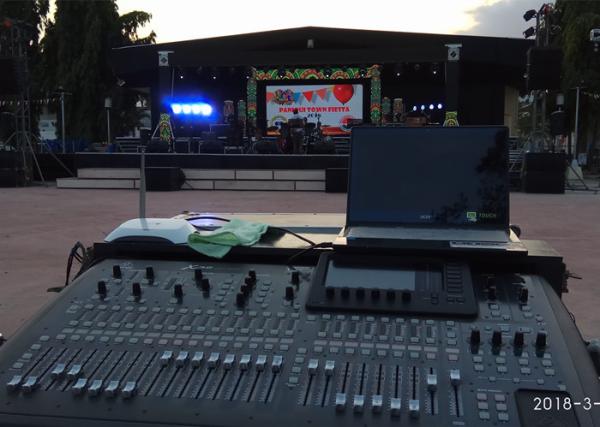

Applications:
broadcast, auditoriums, stage events, concerts, malls, market
squares, offices, hotels, restaurants, banquets , sports,
entertainment and other special event.
Outdoor stage shows ,big concert, wedding background , media Facade
, Video Productions
LED screens are perfect for large crowds and big venues: indoor or
outdoor, day or night!
Eachinled will suggest a best led video wall that suit your event
needs and design
Every event is special and you only get one chance to deliver your
message - Let us assist you
