P4.81 Outdoor Rental Curved Led Screen with 500mmX500mm Led Panel
500mmX500mm Led Cabinet Description:
1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its
CNC+Die Casting molding process (precision up to 0.05mm), thus it
ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and
packing size, it ensures the greatly fast movement and
installation.
3. Light Weight
The weight of full panel is only 8KG, can be easily hanging up by
one person,
saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and
signal connector is quite easy and fast for in&out operation;
and the signal connection can be in horizontal and vertical ways,
it satisfied the rental application in any cases.
5. New Led Module Size 500mmX125mm.
6. Can make Curved Led Video Wall.
(small pixel pitch P4.81 outdoor led display) Specification :
| Pixel Pitch | 4.81mm |
| Pixel Configuration | SMD2121 |
| Module Resolution | 104*26dots |
| Module Pixles | 2704dots |
| Module Size | 500*125mm |
| LED Cabinet Specification |
| Cabinet Size(W*H*D) | 500*500*70mm |
| Cabinet Resolution | 104*104dots |
| Module Quanity | 4pcs |
| Cabinet Pixels | 10816dots |
| Material | Die Casting Aluminum |
| Brightness | ≥5500cd/m2 |
| Pixel Density | 43264dots/m2 |
| Driving Method | 1/16 scan constant current |
| View Angle | 140H,120V |
| Optimal Viewing Distance | ≥4 |
| Brightness Control | Red,Green and Blue 4096 Grade/Each |
| Fresh requency | ≥2000Hz |
| Frame Frequency | 60Hz |
| Input Voltage | AC100 - 120V/50Hz |
| AC200 - 240V/50Hz |
| Defects Rate | ≤0.00001 |
| Power Consumption | Max:160W/Cabinet Average:80W/Cabinet |
| Screen weight | 9kg/Cabinet |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Earth Leakage Current | <3mA |
This Outdoor LED screens are perfect for large crowds and big
venues: indoor or outdoor, day or night!

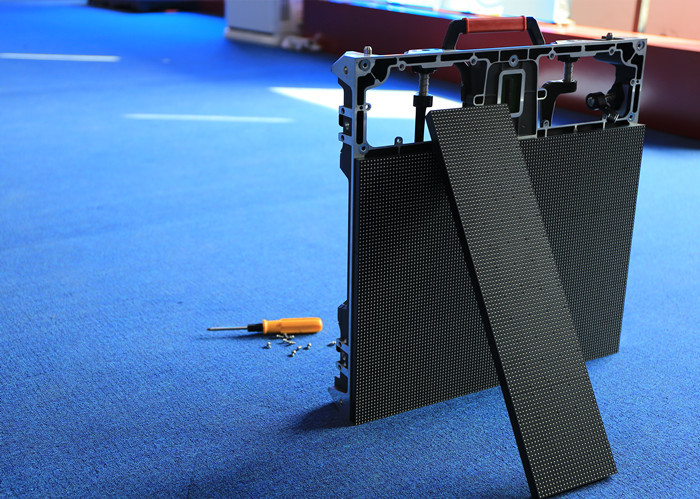

P3.91 Led Cabinet Product Photos:
Applications:
Entertainment venues ,broadcast, auditoriums, stage events, malls,
market squares, offices, hotels, restaurants, banquets , sports,
entertainment and other special event.
Outdoor stage shows ,big concert, wedding background , media Facade
, Video Productions
Eachinled
As a high-tech enterprise integrated with scientific research,
design, production, maintenance, sales and system integration, Shenzhen Eachinled Optoelectronics Co.Ltd is specialized in LED display screen. We have a professional
high-quality technical R & D team engaged in R & D of high-tech
products for years with solid technical strength. We also own many
rich experienced engineers and professional product development and
design engineers. With advanced production equipment and test
instruments and particularly excellent marketing team and channel
cooperators, we manage the market expansion and after-sales service
in an overall manner.
FAQ
Q1.What details need to provide before get a quotation?
A1: The buyer needs to provide pixel pitch, usage, dimension of
screen and as more details as possible.
Q2: What are the Payment terms ?
A2: We accept T/T, Western Union, L/C and so on.
Q3:What about a cheaper price?
A3: As you know we are a factory, so the price we offer you is
reasonable, and we must make sure good quality. You can compare the
price to other suppliers if in all the same product, but if your
quantity is large indeed, we can also consider very less profit for
your long time cooperation with us to make co-win.
Now contact us for more details !
