2.97mm SMD1515 Indoor Rental Stage LED Screen Video Wall 168X41 Dots

    Buy cheap 2.97mm SMD1515 Indoor Rental Stage LED Screen Video Wall 168X41 Dots from wholesalers

    Buy cheap 2.97mm SMD1515 Indoor Rental Stage LED Screen Video Wall 168X41 Dots from wholesalers
    • Buy cheap 2.97mm SMD1515 Indoor Rental Stage LED Screen Video Wall 168X41 Dots from wholesalers

    2.97mm SMD1515 Indoor Rental Stage LED Screen Video Wall 168X41 Dots

    Ask Lasest Price
    Brand Name : Eachinled
    Model Number : P2.97
    Certification : CE Rohs IOS9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Square meters Per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    2.97mm SMD1515 Indoor Rental Stage LED Screen Video Wall 168X41 Dots


    2.97mm SMD1515 Indoor Rental Stage LED Screen Video Wall With Signal Double Backup Funcation


    Product Description:


    High refresh rate can be reached 3840HZ. With the best quality IC, it can show you the perfect visual effect. No need to disassemble the whole screen for maintenance. Each components can be detached individually for that purpose. The Die casting aluminum cabinet makes the single cabinet as light as 8KG. Specially designed masks can make the horizontal viewing angle up to 140 degrees. The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent. Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, it means to save 35% money. Widely use for stage shows ,big concert, wedding background , media Facade , Video Productions and so on.


    Technical Specifications:

    Small Pixel Outdoor LED Display
    ModulePixel Pitch2.97mm
    Module size500mmx125mm
    Density of pixel/(dots/m2)112896
    Led encapsulationSMD1515
    Resolution of module168X41 dots
    MainOptimum viewing distance3m
    View angle / °140 H,120 V
    Max power consumption/W/M2400
    Size of cabinet/mm500X500
    Resolution of cabinet168x168
    Weight of cabinet/kg8
    Driving method1/14 scan constant current
    Refresh rate Hz/S≥3840
    Luminance of white balance≥1000 nits
    Waterproof rateIP43(front)/ IP43(back)
    Working vlotage110-220 VAC/+/- 10%
    Input signalRF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
    Control systemNovastar(sending card,receiving cards and Hubs)
    Average of non-failure life>50,00h
    Life span>100,000h
    Functionaless dot rate

    <0.01%

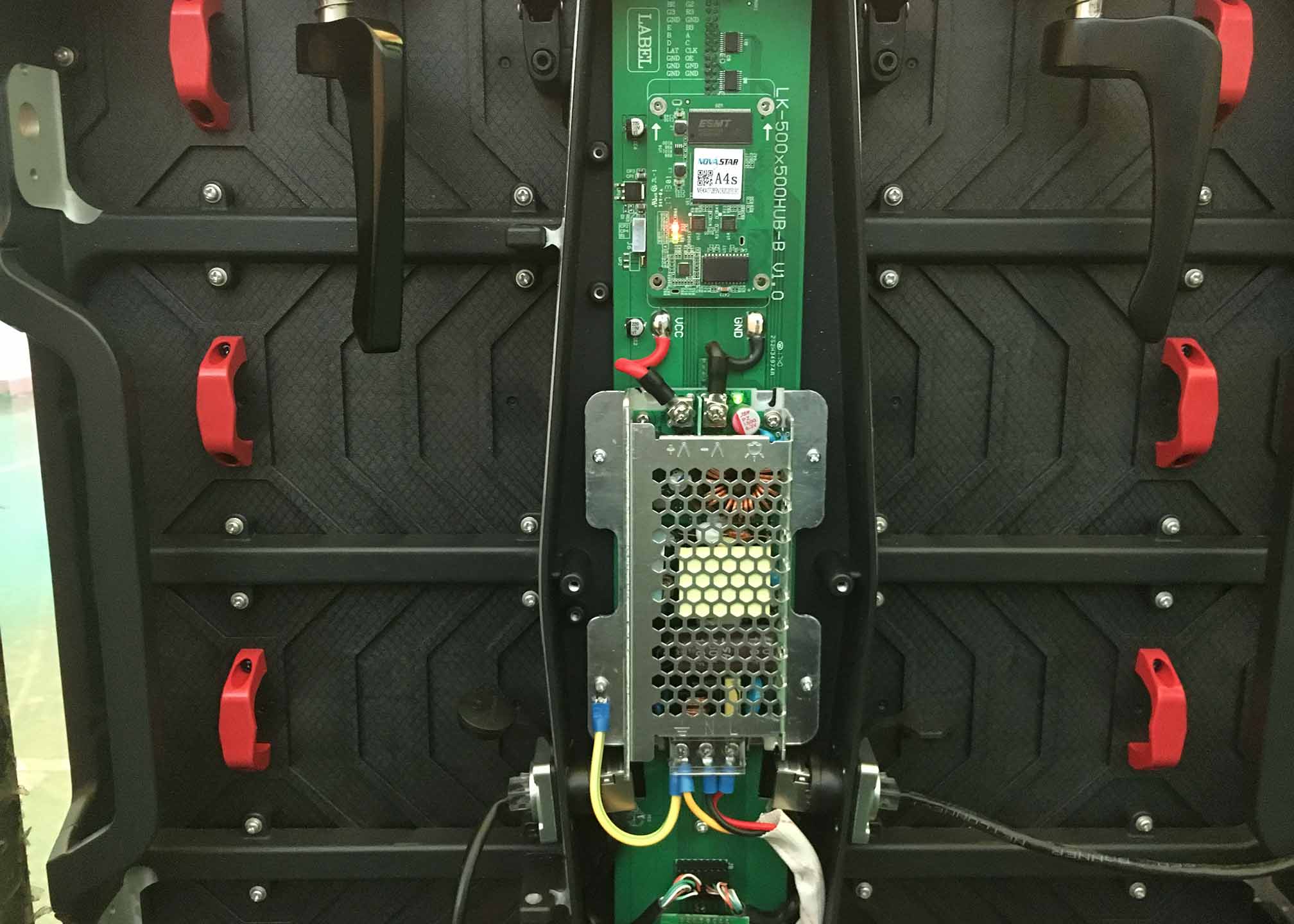

    Detail Product Pictures:


    FAQ:

    Q1: How is the ambient humidity of LED display screen?

    A1: When installing screen, ambient relative humidity should be in the range from 30% to 70%. It is prone to get static electricity when the indoor humidity is below 30%; When the indoor humidity is higher than 70%, electronic components are easy to get damp.


    Q2: Can the LED display screen work at corrosive gas environment?

    A2: Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.


    Q3: Can the LED display screen work at electromagnetic radiation environment?

    A3: Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.


    Q4: Can the LED display screen work when lightning?

    A4: If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes. Do not use the display in strong lightning and other severe weather.


    Q5: Can the LED display screen display long time in one kind of color?

    A5: Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.
