Small Pixel Pitch Front Service Led Display Rgb Die Casting Aluminum Cabinet

Shenzhen Eachinled Optoelectronics Co.,Ltd
Contact Now
    Buy cheap Small Pixel Pitch Front Service Led Display Rgb Die Casting Aluminum Cabinet from wholesalers

    Buy cheap Small Pixel Pitch Front Service Led Display Rgb Die Casting Aluminum Cabinet from wholesalers
    • Buy cheap Small Pixel Pitch Front Service Led Display Rgb Die Casting Aluminum Cabinet from wholesalers

    Small Pixel Pitch Front Service Led Display Rgb Die Casting Aluminum Cabinet

    Ask Lasest Price
    Brand Name : Eachinled
    Model Number : P1.9
    Certification : CE Rohs IOS9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Square meters Per Month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    Small Pixel Pitch Front Service Led Display Rgb Die Casting Aluminum Cabinet


    Small Pixel Pitch Front Service Led Display Rgb Die Casting Aluminum Cabinet


    Product Description:

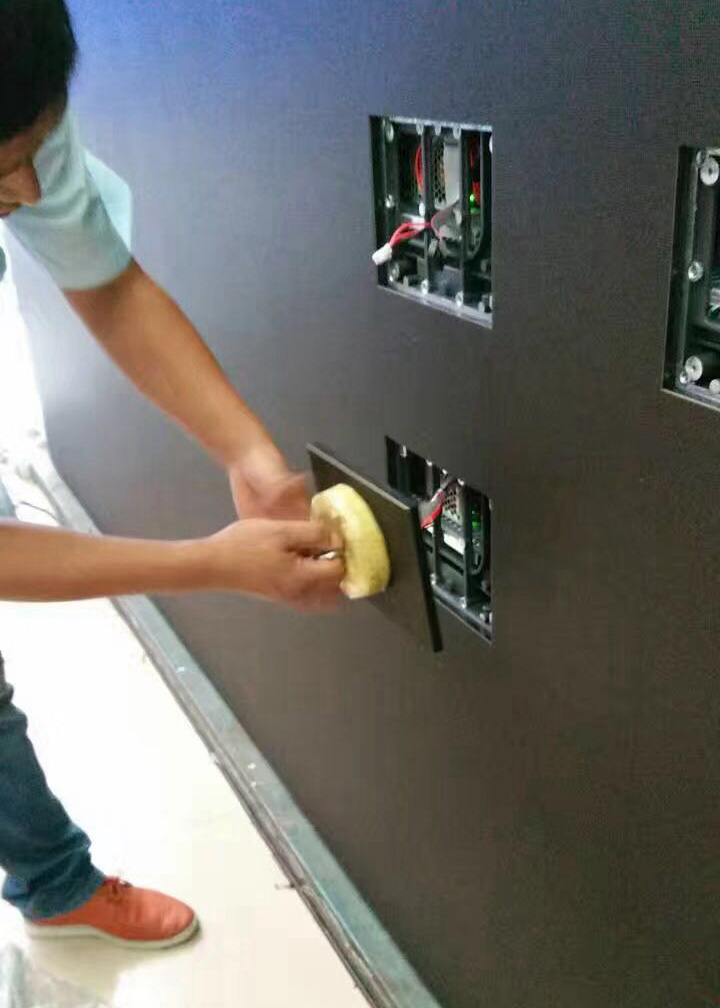

    The most special and advantages is the led module can be maintenance front and back,very easy and fast disassembly and mounted by fixing magnets, easy and convenient dismantling of modules without the use of tools (only needs 30s), unique protective structure which protect modules from damaging.Designed according to ergonomics, 16:9 golden screen ratio, 2K 4K 8K large screens easily realized, high gray scale and high refresh rate in low brightness, perfect viewing experience. Simple cabinet design, ultra thin ,seamless and easy for maintenance.


    Technical Specifications:

    Small Pixel Outdoor LED Display
    ModulePixel Pitch1.9mm
    Module size300mmx168.75mm
    Density of pixel/(dots/m2)284444
    Led encapsulationSMD1010
    Resolution of module160X90 dots
    MainOptimum viewing distance2m
    View angle / °160 H,160 V
    Max power consumption/W/M2650
    Size of cabinet/mm600 mm X 337.5 mm
    Resolution of cabinet320 x 180
    Weight of cabinet/kg10
    Driving method1/27 scan constant current
    Refresh rate Hz/S≥3840
    Luminance of white balance≥800 nits
    Waterproof rateIP43(front)/ IP43(back)
    Working vlotage110-220 VAC/+/- 10%
    Input signalRF,S-Video,DVI,YUV,YC&Composition ,etc
    Control systemNovastar(sending card,receiving cards and Hubs)
    Average of non-failure life>50,000h
    Life span>100,000h
    Functionaless dot rate

    <0.01%




    FAQ:

    Q1: What's the pixel pitch for Indoor LED Display Screen ?

    A1: Indoor&Outdoor P1.9mm/P2.5mm/P2.9mm/P3mm/P3.75mm/4mm/5mm/P6mm/P4.8mm/P5.33/P6mm)

    Q2: Where is it used for?
    A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

    Q3: Can it play HD video?
    A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.

    Q4: What's the controlling system?
    A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.

    Q5: How about the size of project?
    A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
