P1.26 P1.5 P1.6 P1.9 HD LED Video Screen for TV Studio / Hotel
Lobby / Meeting
1. High quality SMD 3-in-1(SMD1010 LEDs), wide viewing angle.

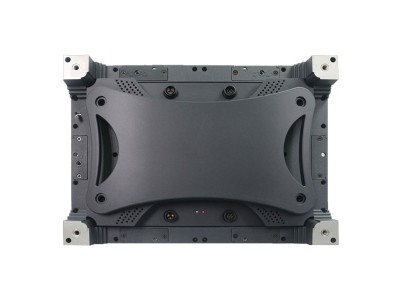

2. 400x300mm Die-casting aluminum LED panel, nice appearance and
good quality.
3. Super thin, light weight,only 6Kg per LED panel, with handles
and fast locks, easy to install
4. seamless and flatness to ensure high quality video effect.
5. Super high resolution, more vivid viewing effect
6. Front serviceable, easier for maintenance
| Pixel pitch(mm) | 1.923 |
| Pixel Configuration | SMD1010 |
| Pixel density(dots/m2) | 270400 |
| Module resolution(W×H) | 104×156 |
| Module size (mm) | 200(W)×300(H) |
| Module weight (kg) | 0.4 |
| Maximum power consumption of the module(W) | 40 |
| Module of cabinet (W×H) | 2×1 |
| Cabinet resolution(W×H) | 208×156 |
| Cabinet size (mm) | 400(W)×300(H)×66(D) |
| Cabinet area(m2) | 0.12 |
| Cabinet weight (kg) | 4.6 |
| Cabinet level up degree(mm) | ≤0.2 |
| Maintenance mode | Front/Rear |
| Cabinet raw material | Die-casting aluminum |
| White Balance Brightness (nits) | ≥800(6500K) |
| Color Temperature (K) | 3200—9300 (adjustable) |
| Viewing Angle (Horizontal / Vertical) | 160/160 |
| Contrast | 4000:01:00 |
| Peak power consumption (W / m2) | 800 |
| Average power consumption (W / m2) | 250 |
| Power supply requirements | AC90~264V,frequency 47-63(Hz) |
| Frame rate (Hz) | 50&60 |
| Drive mode | Constant drive,1/26 |
| Grayscale level | 65536 |
| Refresh rate (Hz) | ≥3840 |
| Number of color processing bits | 16bit |
| Video playback capabilities | 2KHD,4KHD |
| Operating temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
| Applicable standards | CCC,TUV-CE,ETL |
Product Describtion:
4:3 design
Cabinet's 4:3 resolution is specialized for command center.
Die cast aluminum cabinet, guarantee you a flat and seamless
screen.
Excellent Display Effect
HD1.9 has exceptional display quality even when brightness is
reduced to 20%.
HD LED TV Screen VideoWall for TV Studio,Hotel Lobby,Meeting
Our Service
1. Warranty
(1) We provide warranty of all components for 24months. During this
time, we will replace or repair our goods for free if there is
something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the
operation training and maintenance training in the facory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consulation
(1) We provide full maintenance for a lifetime and charge for the
raw materials only.
(2) We also provide lifetime consulation by E-mail, call, MSN or
other ways for free.
