P5.95 Full color SMD2727 RGB 3 in 1 Waterproof LED Screen Less Power Consumption

Shenzhen Eachinled Optoelectronics Co.,Ltd
Contact Now
    Buy cheap P5.95 Full color SMD2727 RGB 3 in 1 Waterproof LED Screen Less Power Consumption from wholesalers

    Buy cheap P5.95 Full color SMD2727 RGB 3 in 1 Waterproof LED Screen Less Power Consumption from wholesalers
    • Buy cheap P5.95 Full color SMD2727 RGB 3 in 1 Waterproof LED Screen Less Power Consumption from wholesalers

    P5.95 Full color SMD2727 RGB 3 in 1 Waterproof LED Screen Less Power Consumption

    Ask Lasest Price
    Brand Name : Eachinled
    Model Number : P5.95
    Certification : CE Rohs IOS9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Square meters Per Month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    P5.95 Full color SMD2727 RGB 3 in 1 Waterproof LED Screen Less Power Consumption


    P5.95 Full color SMD2727 RGB 3 in 1 Waterproof LED Screen Less Power Consumption


    1. Module size: 250mm (L) * 500mm (H) with good quality black Mask improve colour consistance.

    2. Only 2 steps to lock the cabinets together. And the lock is with Anti-release design which makes it more secure.

    3. The screen could be both curved design and regular straight design.

    4. The bottom modules on the cabinet are about 5mm off the round. So they will not be hit when we put the cabinets on the ground. This feature greatly protects the LEDs during assembly and disassembly.

    5. Adopt superior quality SMD 3 in 1 LED lamp, gorgeous color performance.

    6. The screen could be hung up for different kinds of event. And it also could be put on the floor as dance floor.


    Technical Specification:


    ItemsParameter
    Pixel PitchPH5.95mm
    Module Resolution(W*H)42(W)*84(H)
    Pixel Configuration1R1G1B(in 3 n 1)
    LED EncapsulationSMD 2727
    Pixel Density28224 Pixel /m2
    Driving Method1/14 Scan
    Refresh Frequency≥1920Hz
    Driver ICSpecial constant current IC with high refresh rate & high grey scale
    Grey Scale14Bit(depending on the system and IC configuration)
    Cabinet Size500*1000mm
    White balance Brightness≥5000cd/ m2
    Color Temperature8000K±500(adjustable)
    Viewing AngleHorizontal 140° Vertical 120°
    Optimal Viewing Distance>6m
    Working VoltageAC 220V/110V±10%
    Module voltageDC4.2V
    Max Power Consumption400W/PCS
    Avg.Power Consumption200W/PCS
    Lifetime50000 hours
    Operating Temperature–10℃~65℃
    Net weight13Kg/pcs

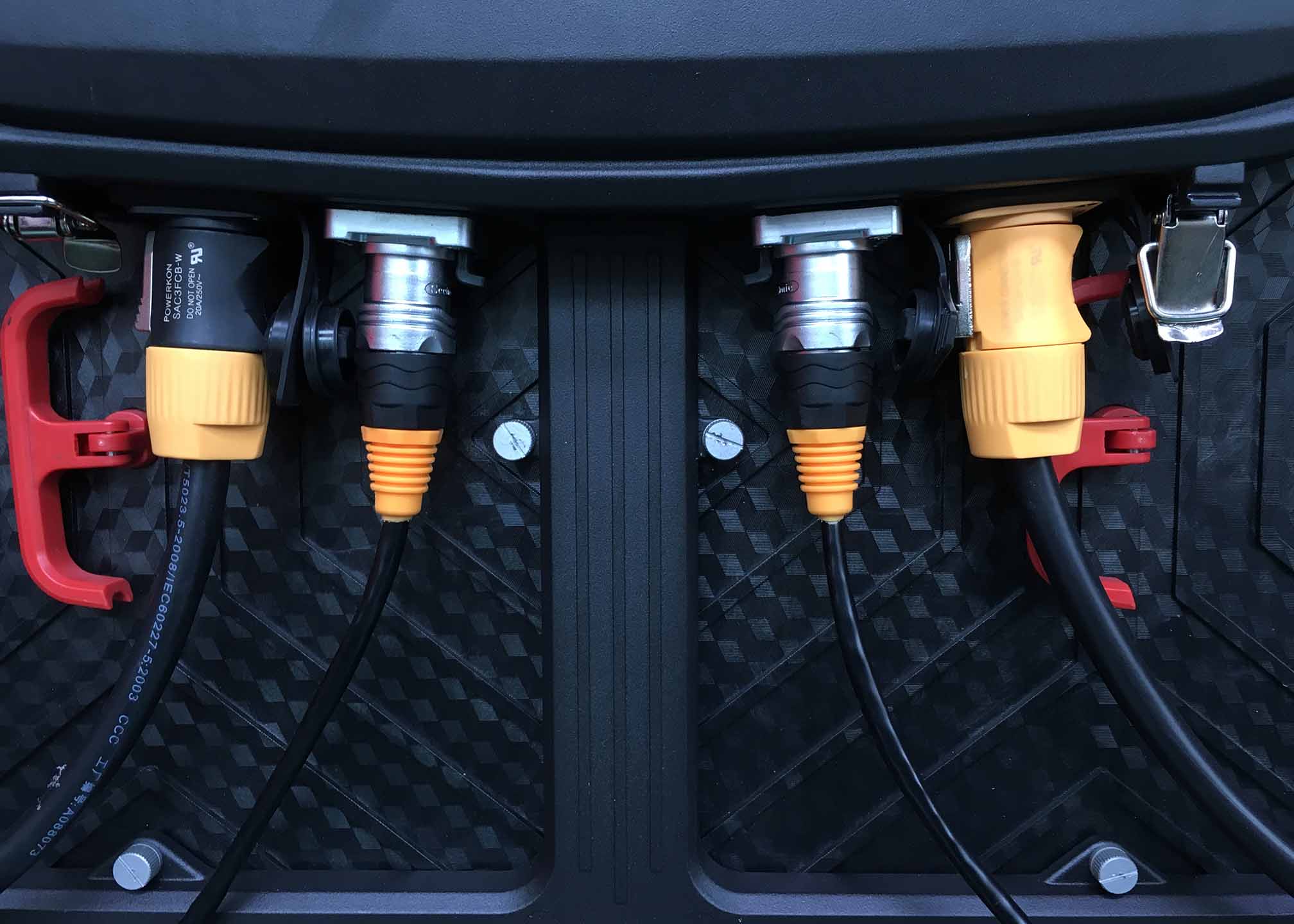

    Detail Product Pictures:


    FAQ:

    Q1: What's the pixel pitch for Indoor LED Display Screen ?

    A1: Indoor&Outdoor P2.5mm/P2.9mm/P3mm/P3.75mm/4mm/5mm/P6mm/P4.8mm/P5.33/P6mm)

    Q2: Where is it used for?
    A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

    Q3: Can it play HD video?
    A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.

    Q4: What's the controlling system?
    A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.

    Q5: How about the size of project?
    A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
